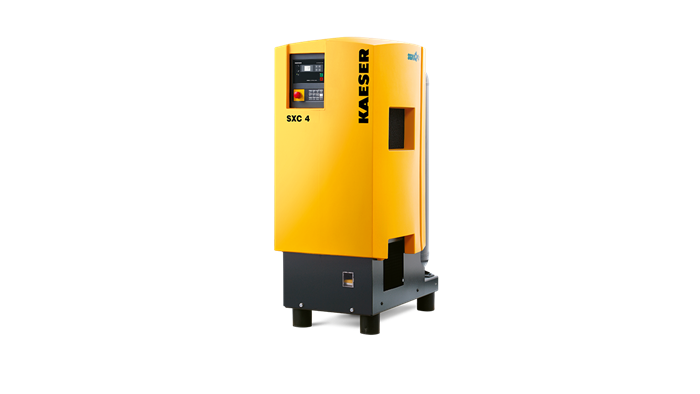

The HPC SXC series supplies a true integrated compressed air package with minimal space requirements. The turnkey HPC SXC rotary screw air compressor range combines exceptional energy efficiency and cost-effective performance with super-quiet compressed air production, treatment and storage. Under the SXC’s double-skinned roto-moulded polyethylene enclosure hides a complete compressed air supply system. The perfect choice for workshops and smaller production facilities, these advanced compressor systems combine exceptional efficiency, ease of maintenance, durability and perfectly matched components to ensure years of dependable, efficient performance.

• Complete Unit

  • Ready-to-run
  • Fully automatic
  • Super sound-proofed
  • Vibration-damped
  • Double-skinned rotational moulded polyethylene enclosure
  • Optimal accessibility of all service points after cover removal

  Sound insulation

  • Sound enclosure
  • Anti-vibration mounts
  • Dual anti-vibration mounts

  Electric motor

  • Energy-saving motor (IE2)
  • Quality German manufacture
  • Insulation class F for greater power reserve

  Rotary screw airend

  • SIGMA Profile rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.

  V-belt drive

  • Maintenance-free belt
  • No re-tensioning

  Fluid and air flow

  • Honeycombed dry air filter
  • Inlet with check valve
  • Pneumatic venting valve
  • Cooling fluid tank with separately installed separator cartridge
  • Pressure relief valve
  • Minimum pressure/check valve
  • Micro-filter in the cooling fluid circuit

  Cooling

  • Air-cooled
  • Aluminium cooler for cooling fluid with separate fan motor
  • Second fan on drive motor shaft
  • Automatic warm run control (only active at very low loads)

  Receiver

  • Internally coated
  • Electronically controlled condensate drain
