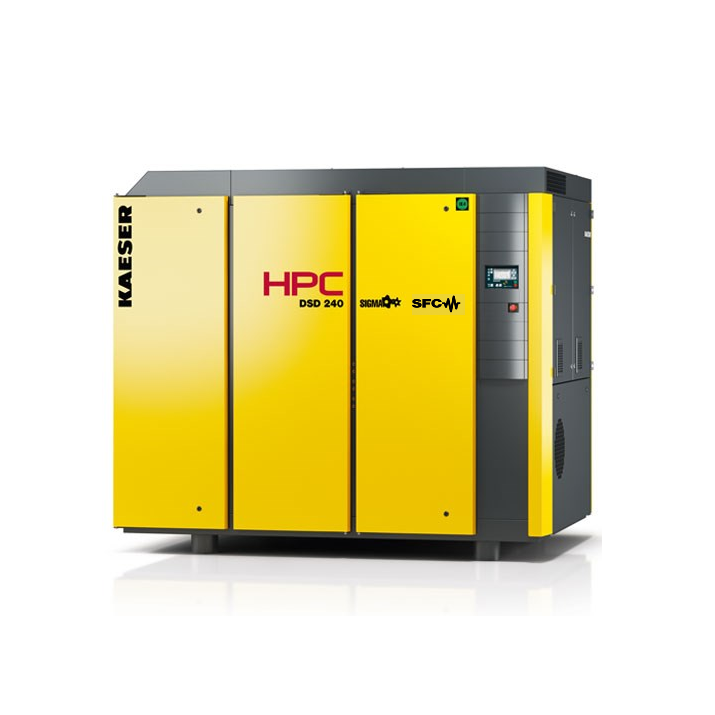

At the heart of each HPC DSD series direct drive rotary screw air compressor is the specially designed airend with flow-optimised Sigma Profile rotors delivering more compressed air for less energy consumption. The efficiency of the airend is further complimented by a highly effective cooling system with dual-flow fan. This innovative design not only enhances cooling performance, but also minimises sound emissions. Furthermore, separate intake of motor-cooling air and air for compression from the ambient surroundings ensures optimum motor cooling and increased compression performance.

"HPC Air Compressors Come Complete With A Fully Inclusive 5 Year 'No Quibble' Parts & Labour Warranty"

The HPC DSD series rotary screw compressors are the perfect partners for high efficiency industrial compressed air stations. The internal SIGMA CONTROL 2 compressor controller offers numerous communication channels, which allows seamless connection with advanced master controllers, such as KAESER’s SIGMA AIR MANAGER, and in-house centralised control systems. This enables simple set-up and achieves unprecedented levels of efficiency.

The distinctive and eye-catching design of the HPC DSD series from the outside is complemented by intelligent component layout on the inside for even greater energy efficiency: All service and maintenance points are within easy reach and directly accessible. This saves both time and money when it comes to servicing

Complete unit

• Ready for operation
• Fully automatic
• Super sound-proofed
• Vibration-damped
• All panels powder-coated

Sound insulation

• Panels lined with laminated mineral wool
• Maximum 72 dB(A) to PN8NTC 2.3 at one metre distance
• Free field measurement

Vibration dampening

• Anti-vibration mounts
• Dual anti-vibration mount

Airend

• Single stage with cooling fluid injection for optimal rotor cooling
• Genuine KAESER rotary screw airend with energy-saving SIGMA profile

Drive

• Directly coupled without gearing
• High-flex coupling

Electric motor

• Premium Efficiency IE4 drive motor with Pt100 winding temperature transducer for motor monitoring
• Premium quality German-made motor
• IP 55
• Insulation class F for greater power reserve

Motor to airend connection

• Airend with integral coupling bell

Electrical components

• Control cabinet to IP 54
• Control transformer
• Control cabinet for Siemens Masterdrive frequency converter (for SFC versions)
• Floating contacts for ventilation control

Cooling

• Air-cooled
• Separate aluminium coolers for compressed air and fluid
• Radial fan with separate electric motor
• Lubrication from the outside
• Optionally available in water-cooled design with either plate-type or shell and tube heat exchanger

Refrigeration dryers

• CFC-free
• R 134a refrigerant
• Fully insulated
• Hermetically sealed refrigerant circuit
• Scroll refrigerant compressor with energy-saving shut-down feature
• Hot gas bypass control
• Electronic condensate drain
• Upstream centrifugal separator

Heat recovery (HR)

• Optionally available with integrated heat recovery system (plate-type heat exchanger)

SIGMA CONTROL 2

• "Traffic-light" LED indicators show operational status at a glance
• Plain text display
• 30 selectable languages
• Soft-touch keys with icons
• Fully automated monitoring and control
• Selection of Dual, Quadro, Vario and Continuous control as standard
• Interfaces: Ethernet
• Additional optional communications modules for: Profibus DP, Modbus, Profinet and DeviceNet
• SD-card slot for data-logging and updates
• RFID reader
• Web server
