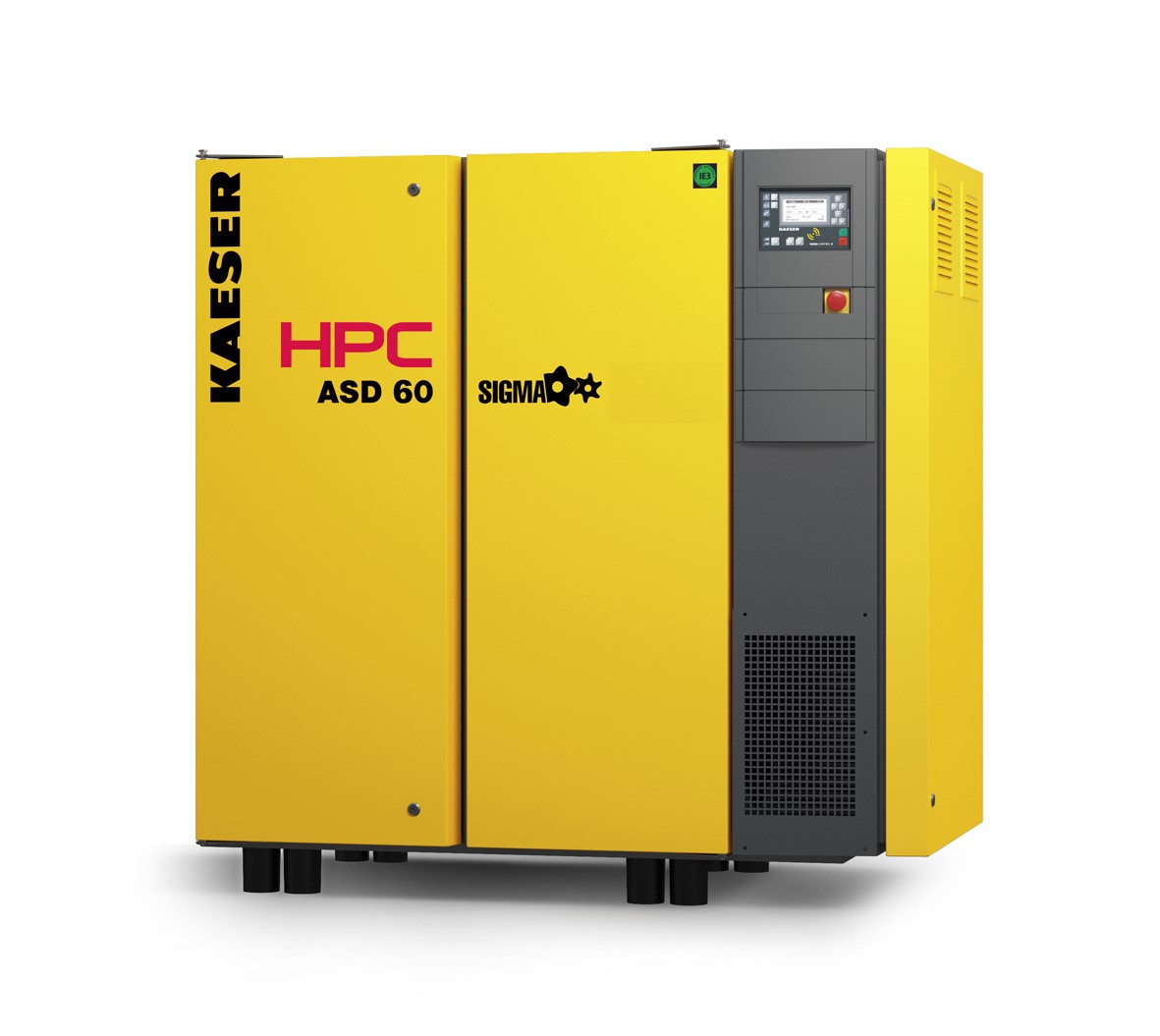

ASD 60
At the heart of each HPC ASD series direct drive rotary screw air compressor is the specially designed airend with flow-optimised Sigma Profile rotors delivering more compressed air for less energy consumption. The efficiency of the airend is further complimented by a highly effective cooling system with dual-flow fan. This innovative design not only enhances cooling performance, but also minimises sound emissions. Furthermore, separate intake of motor-cooling air and air for compression from the ambient surroundings ensures optimum motor cooling and increased compression performance.
"HPC Air Compressors Come Complete With A Fully Inclusive 5 Year 'No Quibble' Parts & Labour Warranty"
The HPC ASD series rotary screw compressors are the perfect partners for high efficiency industrial compressed air stations. The internal SIGMA CONTROL 2 compressor controller offers numerous communication channels, which allows seamless connection with advanced master controllers, such as KAESER’s SIGMA AIR MANAGER, and in-house centralised control systems. This enables simple set-up and achieves unprecedented levels of efficiency.
The distinctive and eye-catching design of the HPC ASD series from the outside is complemented by intelligent component layout on the inside for even greater energy efficiency: All service and maintenance points are within easy reach and directly accessible. This saves both time and money when it comes to servicing.
Complete unit
- Ready for operation
- Fully automatic
- Super sound-proofed
- Vibration-damped
- All panels powder-coated
- For ambient temperatures up to +45 °C
- Sound insulation
- Panels lined with laminated mineral wool
- Vibration dampening
- Anti-vibration mounts
- Dual anti-vibration mount
Airend
- Single stage with cooling fluid injection for optimal rotor cooling
- Genuine KAESER screw compressor airend with energy-saving SIGMA Profile
- 1:1 drive
Drive
- Directly coupled without gearing
- High-flex coupling
Electric motor
- IE3 premium efficiency motor
- Premium quality German-made motor
- IP 55
- Insulation class F for greater power reserve
- Pt100 winding temperature transducer for motor monitoring
- Regreasable bearings
Electrical components
- Control cabinet to IP 54
- Control transformer
- Siemens frequency converter
- Volt-free contacts for ventilation control
Fluid and air flow
- Dry air filter
- Pneumatic inlet and venting valves
- Cooling fluid reservoir with three-stage separator system
- Pressure relief valve
- Minimum pressure/check valve
- ETM Electronic Thermal Management and eco fluid filter in coolant circuit
- All fully piped
- Flexible couplings
Cooling
- air-cooled
- Separate aluminium coolers for compressed air and fluid
- Radial fan with separate electric motor
- Electronic Thermal Management (ETM)
Refrigeration dryers
- CFC-free
- R 134a refrigerant
- Fully insulated
- Hermetically sealed refrigerant circuit
- Rotary refrigerant compressor with energy-saving, cycling shut-down feature
- Hot gas bypass control
- Electronic condensate drain
- Upstream refrigeration dryer with ECO-DRAIN
Heat recovery (HR)
- Optionally available with integrated heat recovery system (plate-type heat exchanger)
SIGMA CONTROL 2
- Traffic-light LEDs for at-a-glance operational status
- Easy-to-read display
- 30 selectable languages
- Soft-touch icon buttons
- Fully automatic monitoring and control
- Dual, Quadro, Vario and Continuous control modes available as standard options
- Interfaces: Ethernet
- Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
- SD card slot for data logging and updates
- RFID reader
- Web server
