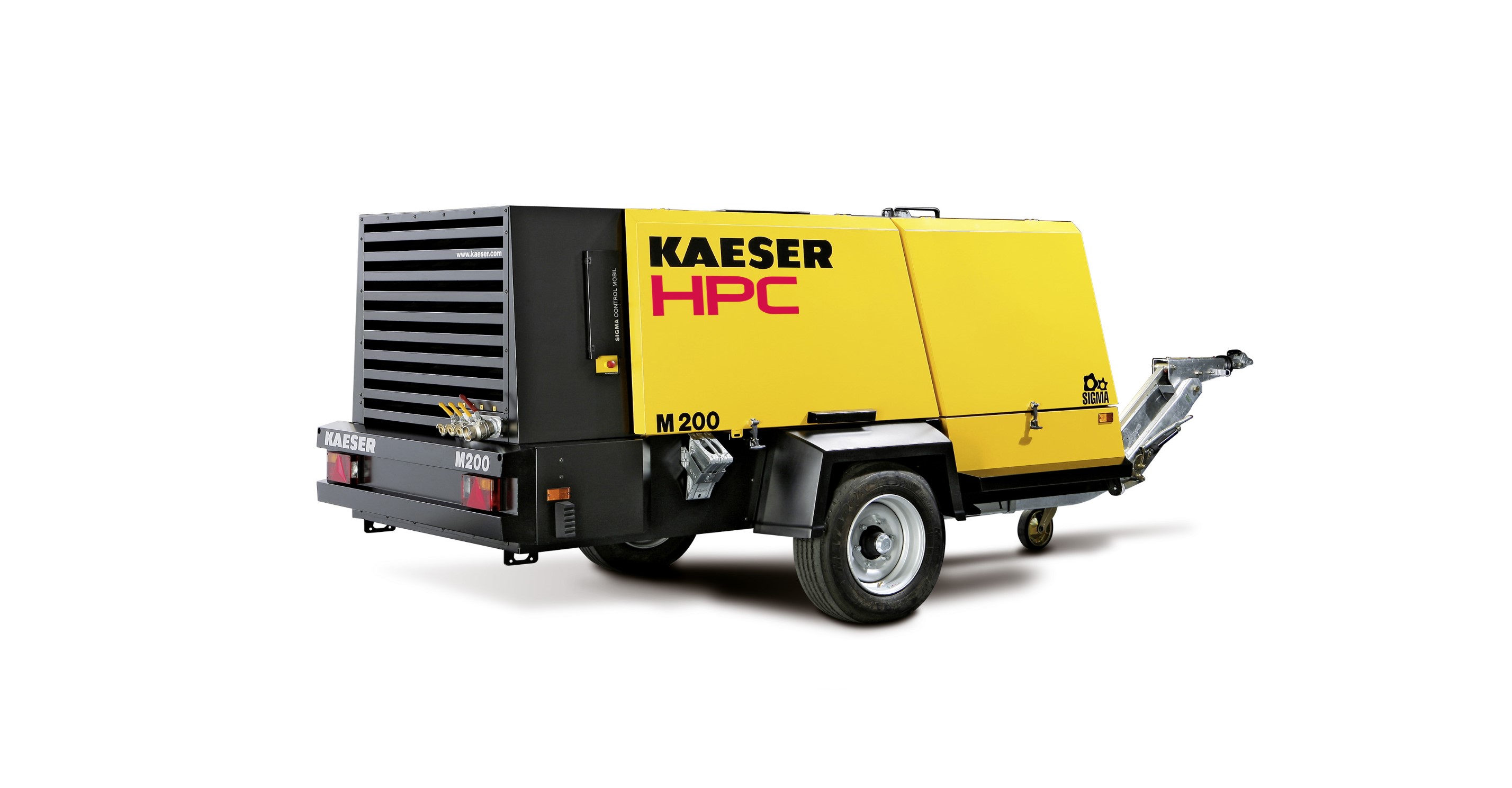

HPC Mobilair M200

Portable Compressors With the world-renowned SIGMA PROFILE Flow rate 10.5 to 17.0 m³/min (370 – 600 cfm)

The perfect energy-saving combination: Caterpillar engine and KAESER airendThe powerful partnership of an energy-saving Caterpillar engine and the highly efficient KAESER SIGMA PROFILE rotary screw airend combines outstanding performance with considerably reduced fuel consumption. The MOBILAIR M200 can operate at full power for a whole shift without refuelling. Furthermore, users not only benefit from the quality of two world-class products, but can also rely on the comprehensive KAESER KOMPRESSOREN and Caterpillar global service networks to ensure maximum machine availability.

Exceptional versatility

The MOBILAIR M200 is in a class of its own when it comes to versatility, as it can be specifically tailored to meet the needs of the relevant application. Options include compressed air treatment components, a choice of a fully galvanised chassis with overrun brake and a fixed or height adjustable tow bar, or stationary versions either installed on skids or machine mountings.

SIGMA CONTROL MOBILE

This advanced compressor controller ensures optimised compressed air availability and fuel efficiency using stateof-the-art electronic engine management. The system is both shock and vibration proof corresponding to IP 65 electrical protection. Features include operational mode display, intuitive operation, system monitoring and diagnostics.

Easy to transport

The M200 features a fully galvanised Alko chassis as standard. This not only ensures long-term value retention, but also makes transportation simple – a truck is not required to tow the unit.

Excellent accessibility

The M200’s user-friendly design not only ensures simple operation and outstanding manoeuvrability: the unit’s large enclosure doors also provide excellent component accessibility for unrivalled ease of service. Stationary systems are equipped as standard with maintenance connections for draining of engine oil and compressor fluid.

Simple to operate

The ability to switch over manually from idling to full load operation ensures a reliable, gentle start when operating the unit in cold ambient conditions. The SIGMA CONTROL MOBILE and intuitive operation mean that only 3 buttons are required to operate the M200. Features also include automatic monitoring and shutdown and a metal cover flap to protect the control panel.
