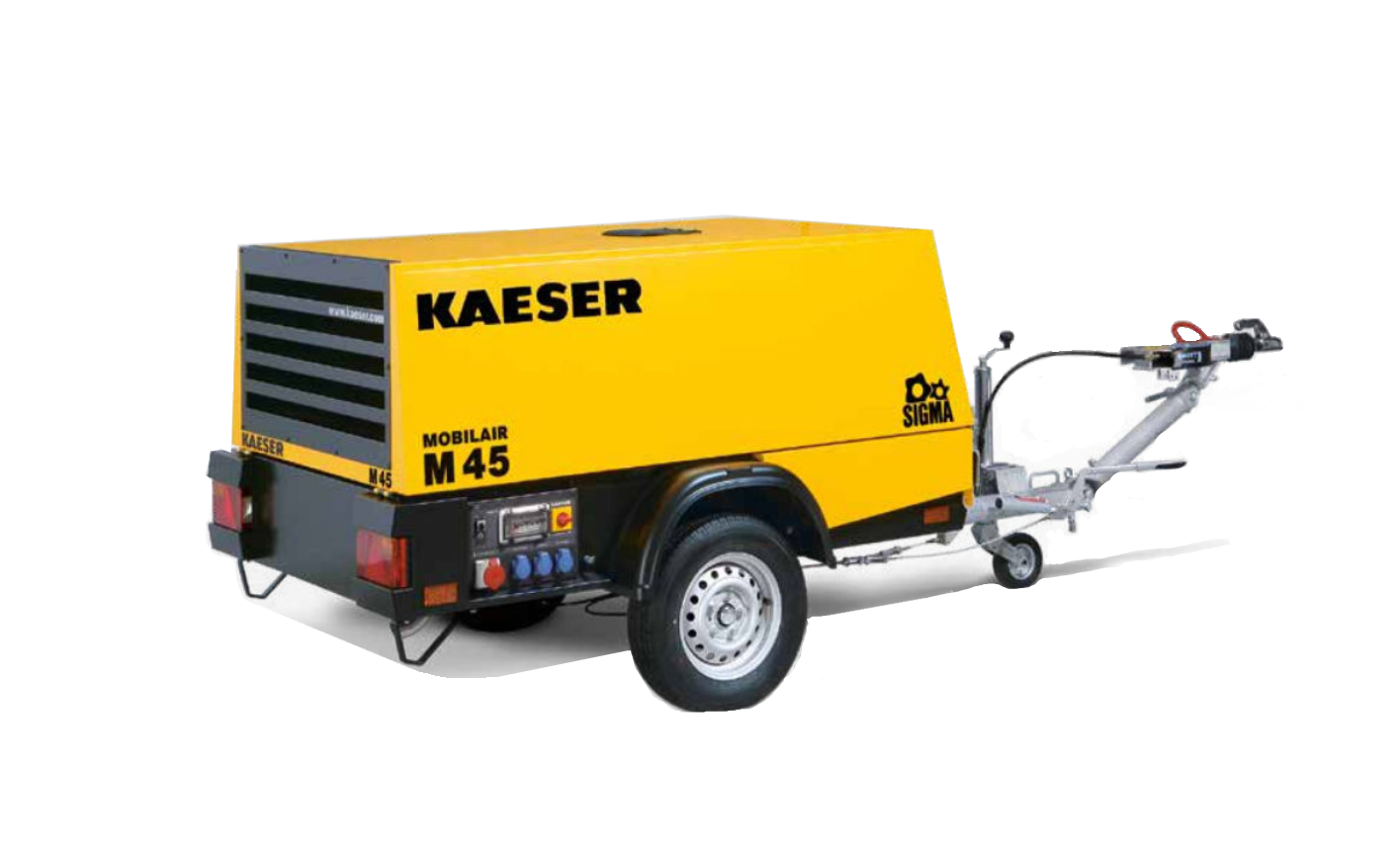

HPC Mobilair M36/M45

Portable Compressors with the world-renowned SIGMA PROFILE flow rate 3.9 to 4.2 m³/min (135 – 150 cfm)

The perfect energy-saving combination A Kubota engine and KAESER airend Equipped with world-renowned SIGMA PROFILE rotors and directly driven by a water-cooled four-cylinder Kubota diesel engine, the low speed KAESER rotary screw airend plays a key role in assuring the exceptional performance of M36/M45 portable compressors. Direct drive eliminates the transmission losses associated with other systems, consequently providing more air with less fuel consumption. A fuel filter with water separation capability further enhances reliability and is equipped as standard.

Durable and versatile

The M36 and M45 are the perfect choice when a specialist compressed air solution is needed, as they can be precisely tailored to meet the needs of the specific application. Options include air treatment components, a three-phase synchronous generator, a choice of a fully galvanised chassis with overrun brake and a fixed or height adjustable tow bar, or stationary versions either installed on skids or machine mounts.

Ambient temperature

Standard units are rated for ambient temperatures between -10 and +50°C. A version for lower ambient temperatures is also available.

Excellent accessibility, optimum serviceability

Thanks to intelligent component layout, all maintenance points are easily accessible via the large gull-wing doors, which makes service work fast and efficient. Optional custom service contracts are also available.

The portable powerhouse

The synchronous three-phase generator (IP54) integrated in the M45 delivers 8.5 kVA, whilst that in the M36 supplies 13 kVA. The brushless generators are maintenance-free and, depending on power consumption, can be toggled from continuous operation to energy-saving automatic start-up. The switch panel – which can be equipped with a lockable cover flap if required – features IP44 splash-protected sockets and a lockable main switch. The safety cut-out system with insulation monitoring makes earthing superfluous.

Simple to operate

The user-friendly control and instrument panel enables all information to be viewed at a glance. Features include continuous monitoring and automatic shutdown in the event of malfunction, as well as a gentle start option for cold conditions. Easy to understand icons assure straightforward user navigation.

Dedicated intake filter

The separate intake filters for the compressor and engine are optimally dimensioned for enhanced reliability and service life and can be changed quickly and easily on-site.
