HPC Sigma PET Air

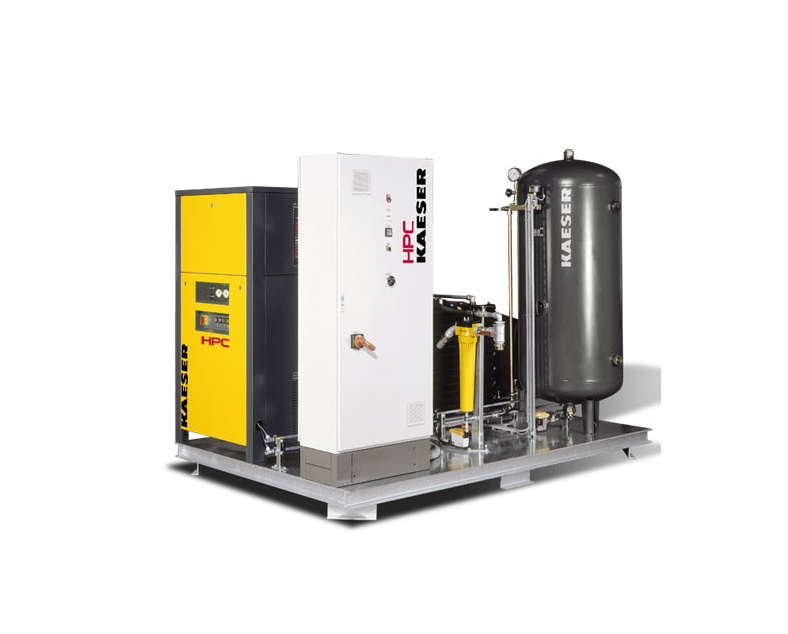

The SIGMA PET AIR complete booster system combines blow and control air production in a single operation-ready system. An air-cooled rotary screw compressor produces the control air whilst simultaneously serving as a pre-compression stage for the blow air. Blow air booster, system controller and all compressed air treatment components for both pressure systems are installed operation-ready on a base frame.

SIGMA PET AIR delivers the following performance parameters:

• Flow rate up to 2772 m³/h
• Blow air up to 45 bar

The SIGMA PET AIR complete booster system is the perfect choice for operators of PET container blow-moulding equipment with high expectations when it comes to reliability, cost-effectiveness and compressed air quality.

Your advantages

Rapid delivery, ready for immediate operation:

Installation on a base frame reduces the unit footprint whilst also streamlining transport and setup. We are also capable of delivering complete, operation-ready SIGMA PET AIR systems installed in containers if desired by the customer.

Unparalleled cooling without high cost:

The majority of our boosters are equipped with air-cooled aftercoolers. In air-cooled units, a separate cooler with its own fan motor ensures minimal temperature differential (ΔT) between the intake air and compressed air, allowing customers to dispense with expensive water-cooled systems.

Benefit from low maintenance requirements:

Since the SIGMA PET AIR system has only two compression stages (rotary screw compressor and booster), significantly less service is required compared to multi-stage high-pressure reciprocating compressors with atmospheric compression.

All components are precisely coordinated for maximum efficiency. This means you'll enjoy maximum cost-effectiveness, reliability and availability with regard to production of control and blower air used in PET container manufacturing.
