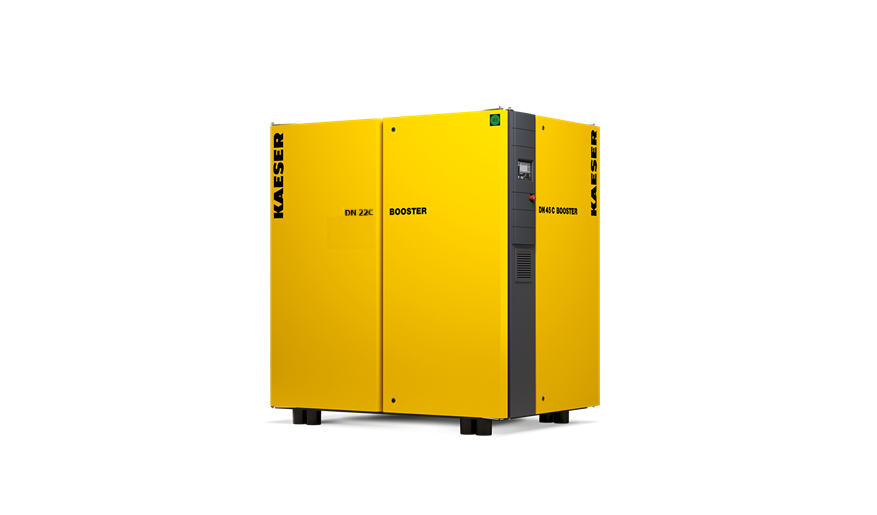

DN 22-C

This complete system has it all: Featuring a new design and a footprint approximately half the size of previous models, the DN C looks good both on the inside and outside. The new component layout not only ensures optimised cooling air flow, but also provides maintenance access.

Moreover, the updated SIGMA CONTROL 2 controller offers new, multiple monitoring and control options with a number of interfaces – including for connection to master controllers – with dynamic control.

Performance parameters:

• 22 – 45 kW
• Initial pressure up to 13 bar – discharge pressure up to 45 bar
• Flow rate: 2.9 – 19.60 m³/min

Optional features:

The system is available as an air- or water-cooled version. Versions for nitrogen recovery, or a closed variant without external air (N2 version), are also available.

Applications:

• PET bottle production
• process air applications
• nitrogen production
• high pressure for test stations (e.g. brakes, coolers, etc.)
• test stations for pressure checks
• burst pressure tests
• pulse tests

This unique compact package is space-saving and powerful: no compromises in performance, reliability or energy efficiency.

Minimal installation effort:

The DN C is delivered ready for connection to the electricity supply. The system can be configured for a large number of applications, including self-monitoring applications.

Service cost savings:

thanks to the new design with access from the front. This is made possible due to the new component layout, which also reduces maintenance effort, e.g. when performing belt changes.
