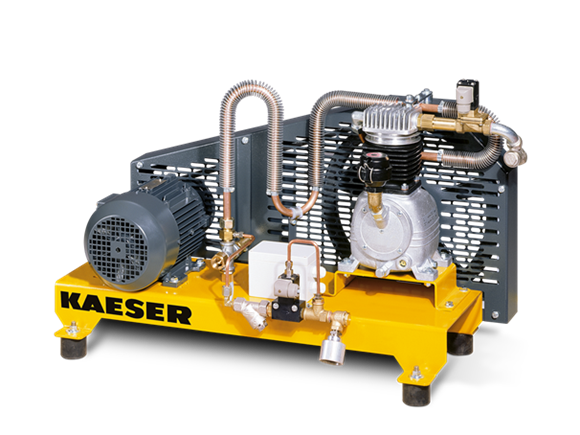

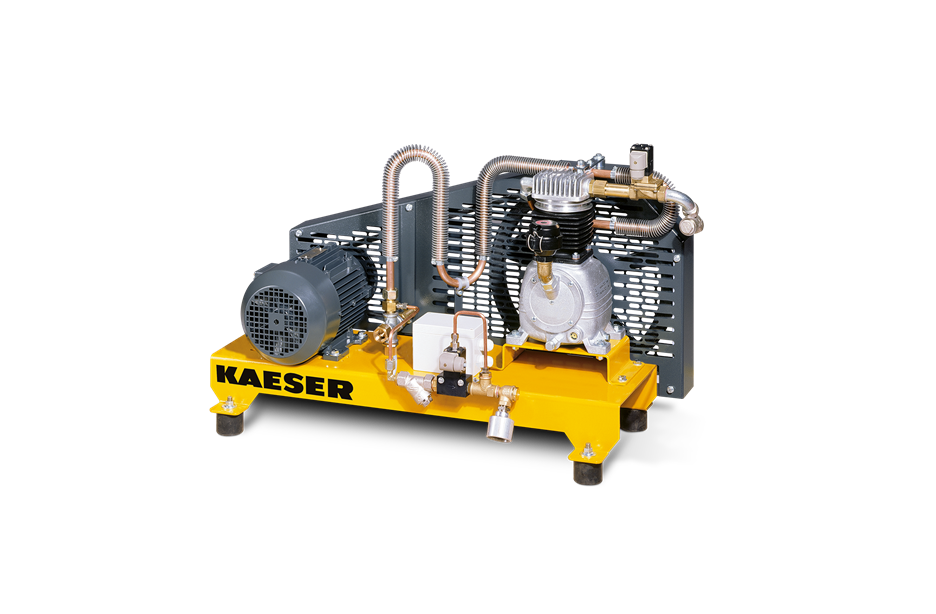

High performance - high pressure reciprocating compressor boosters
N-Series boosters augment existing system pressure in specific locations, elevating it up to 45 bar. HPC KAESER offers an extensive range of high-performance booster reciprocating compressors that work in perfect harmony with rotary screw compressors and SIGMA PET AIR stations.
The N-Series boosters are available with one, two or three cylinders and operate within the following performance parameters:
- Initial pressure up to 13 bar – discharge pressure up to 45 bar
- Flow rate: 0.27 – 20.51 m³/min
Compared to designing the entire compressed air supply system for higher pressure, the use of boosters is significantly more cost-effective for all applications that require process air with a higher degree of compression than the normal control air and supply air at specific locations. PET bottle production is an excellent example of such applications.
Advantages:
- Continuous high-pressure operation:
Innovative features such as oil pressure lubrication and intensified cylinder cooling ensure both long service life and low maintenance requirements as well as continuous system-compatible maximum pressure of 45 bar - Exceptionally low oil requirement:
The high quality cylinders are plateau-honed and feature an extra layer of wear protection. These details ensure low oil consumption over the entire service life - For especially cool compressed air:
The compressed air aftercoolers on the three-cylinder boosters are equipped with separate fans, which ensure low compressed air discharge temperatures. The boosters can be additionally equipped with water-cooled aftercoolers to attain even lower temperatures
N-Series Booster Versions:
- For lower demand applications:
The smaller models in the N-Series range are best suited to applications where low flow rates are needed at pressures up to 40 bar. These specialist reciprocating compressors are equipped with one or two-cylinder compressor blocks and are driven by high efficiency motors with up to 4 kW capacity. The quality of these units is second to none as all compressor blocks are designed, manufactured and assembled by HPC KAESER - For medium to large demand:
When greater air flow rates are needed at pressures up to 45 bar then the mid-size and larger of the N-Series booster models are the natural choice. At the heart of every one of these powerhouses is a precision machined two or three-cylinder compressor block that delivers exceptional efficiency. Premium-efficiency electric drive motors up to 45 kW provide optimal energy efficiency (up to 18.5 kW: IE2, from 18.5 kW: IE3) - For large demand:
The N 2001 G air-cooled versions are equipped with a separate fan-assisted aftercooler to keep the temperature differential between the inlet and compressed air (ΔT) within close tolerances. To ensure optimal cooling performance with a ΔT value of only approximately 5 K even at high ambient temperatures, the N 2001 G models can be equipped with a water-cooled compressed air aftercooler.
