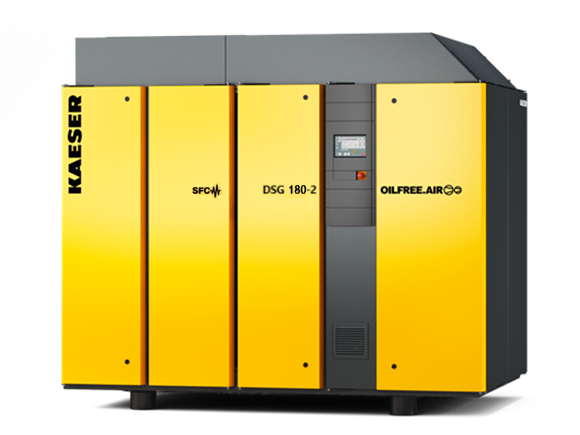

DSG 180-2 SFC

With logical component layout and exceptional attention to detail, HPC KAESER 2-stage dry-running rotary screw compressors were designed specifically with the user in mind. Needless to say, there‘s also the peace of mind that comes with HPC KAESER‘s renowned quality.

Complete unit

• Ready for operation
• Fully automatic
• Silenced
• Vibration-damped
• Service-friendly design
• For ambient temperatures, up to +45 °C

Airend

• Two-stage, oil-free compression rotary screw compressor with precision gearing as per AGMA Q13/DIN-Class 5
• 2nd compression stage uses stainless steel rotors and jacket cooling
• Rotors feature durable coating
• Integrated oil tank with oil tank ventilation
• Fibre-free pulse dampers downstream of both compression stages

Drive motor

• Internationally renowned SIEMENS manufacture
• Premium and Super Premium Efficiency Motor
• Continuous monitoring of motor winding temperature
• Enclosure protection: IP 55

Cooling

• Separate shell and tube heat exchangers consisting of coated steel jacket and CuNi10Fe pipes
• Copper-soldered plate-type heat exchanger as gear oil cooler

Electrical components

• Control cabinet to IP 54
• Switching cabinet ventilation
• Automatic star-delta protection combination
• Control transformer

SIGMA CONTROL 2

• Plain text display
• 30 selectable languages
• Soft-touch keys with icons
• Traffic-light LEDs for at-a-glance operational status
• Fully automatic monitoring and control
• Dual, Quadro, Vario and Continuous control modes available as standard options
• Interfaces: Ethernet
• Optional communication modules for Profibus DP, Modbus, Profinet and DeviceNet
• SD-card slot for data logging and updates
• RFID reader
• Web server
